Wave Pedal
Description |

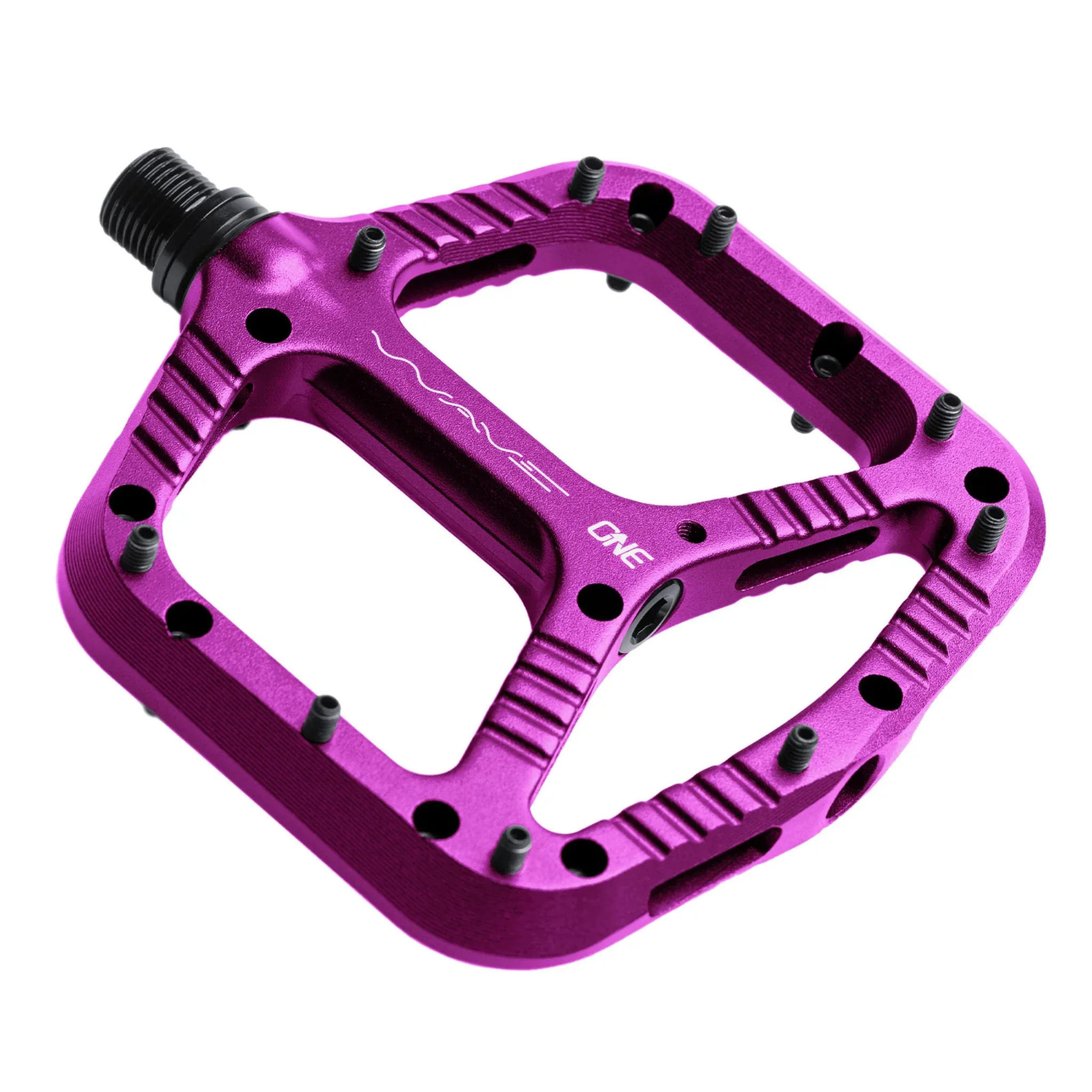

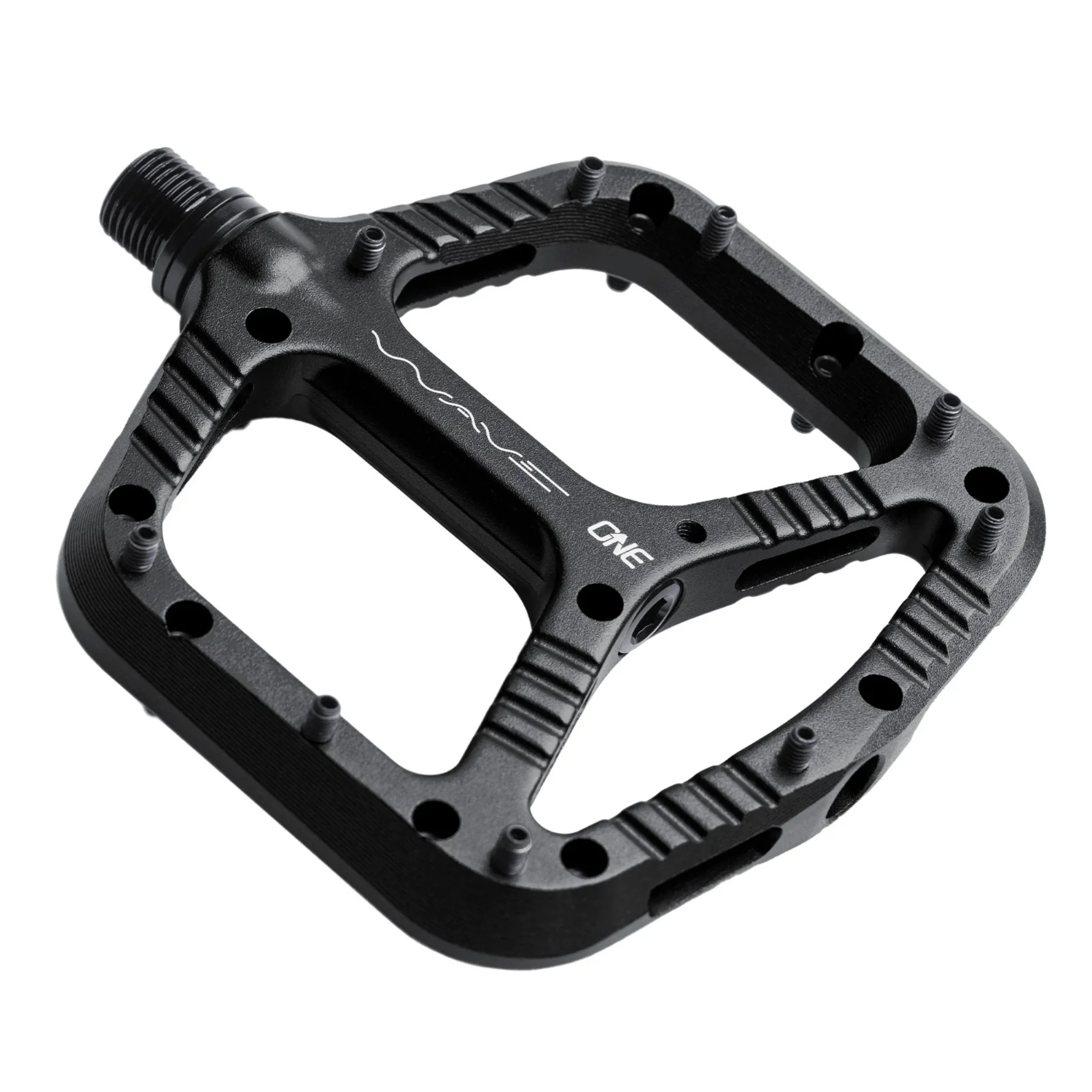

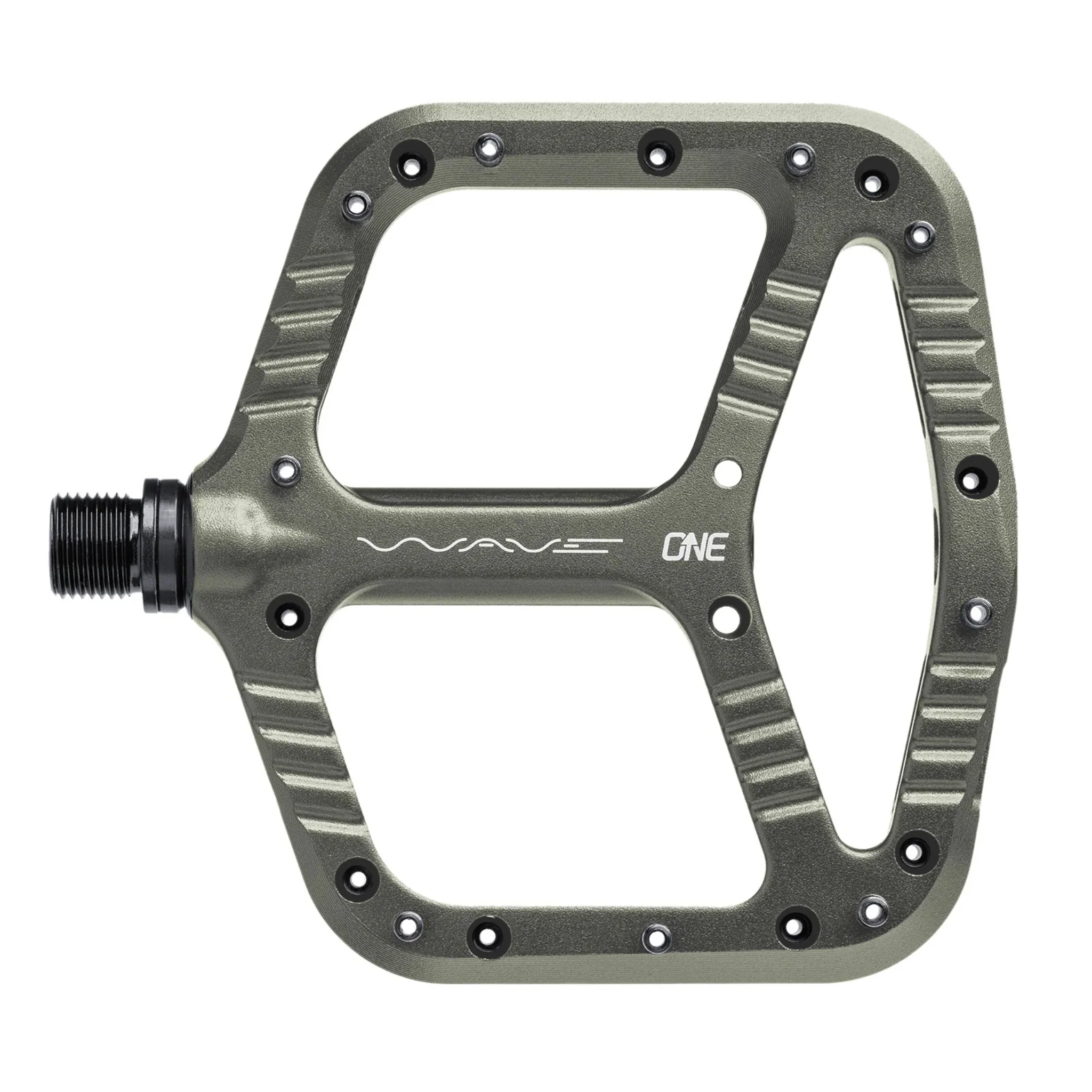

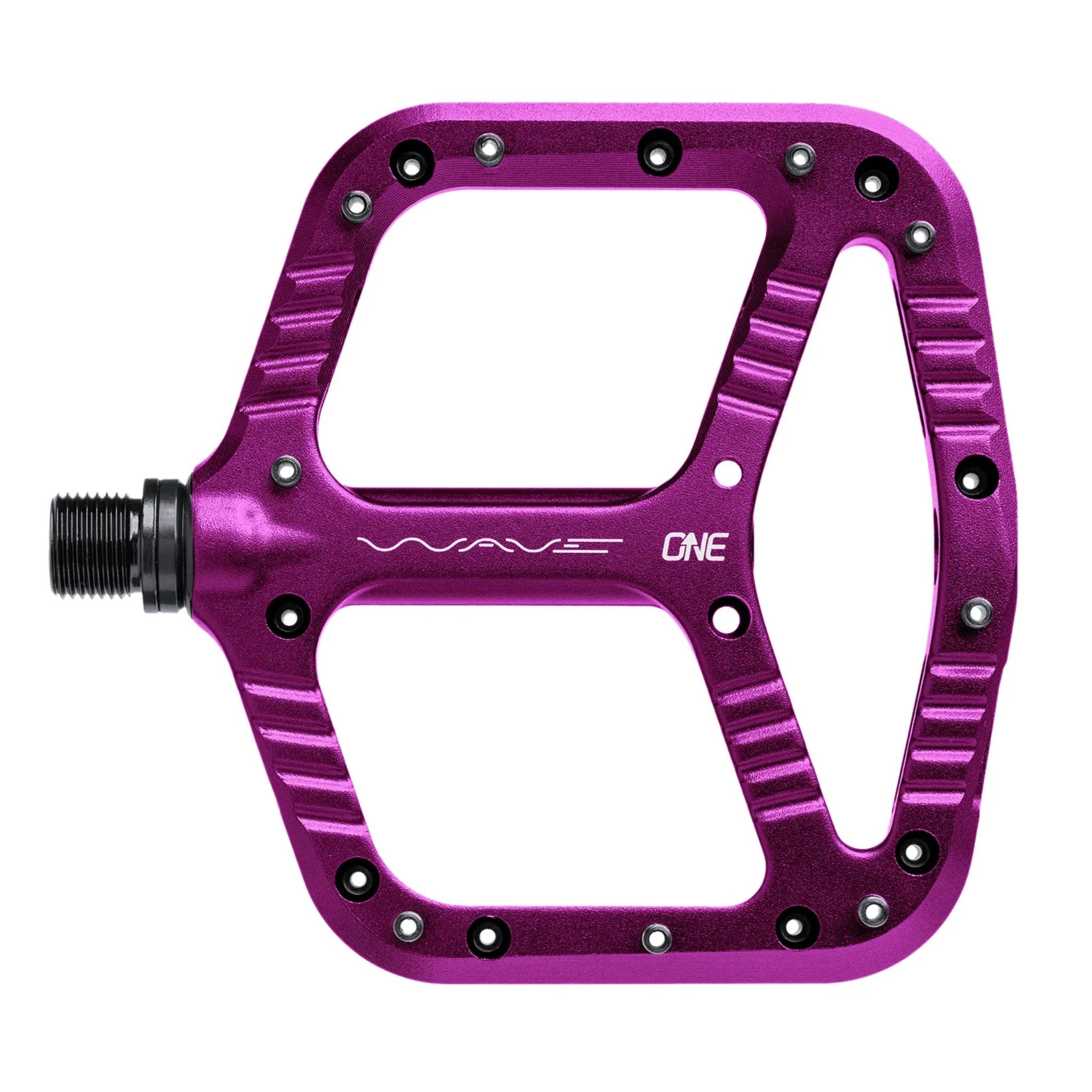

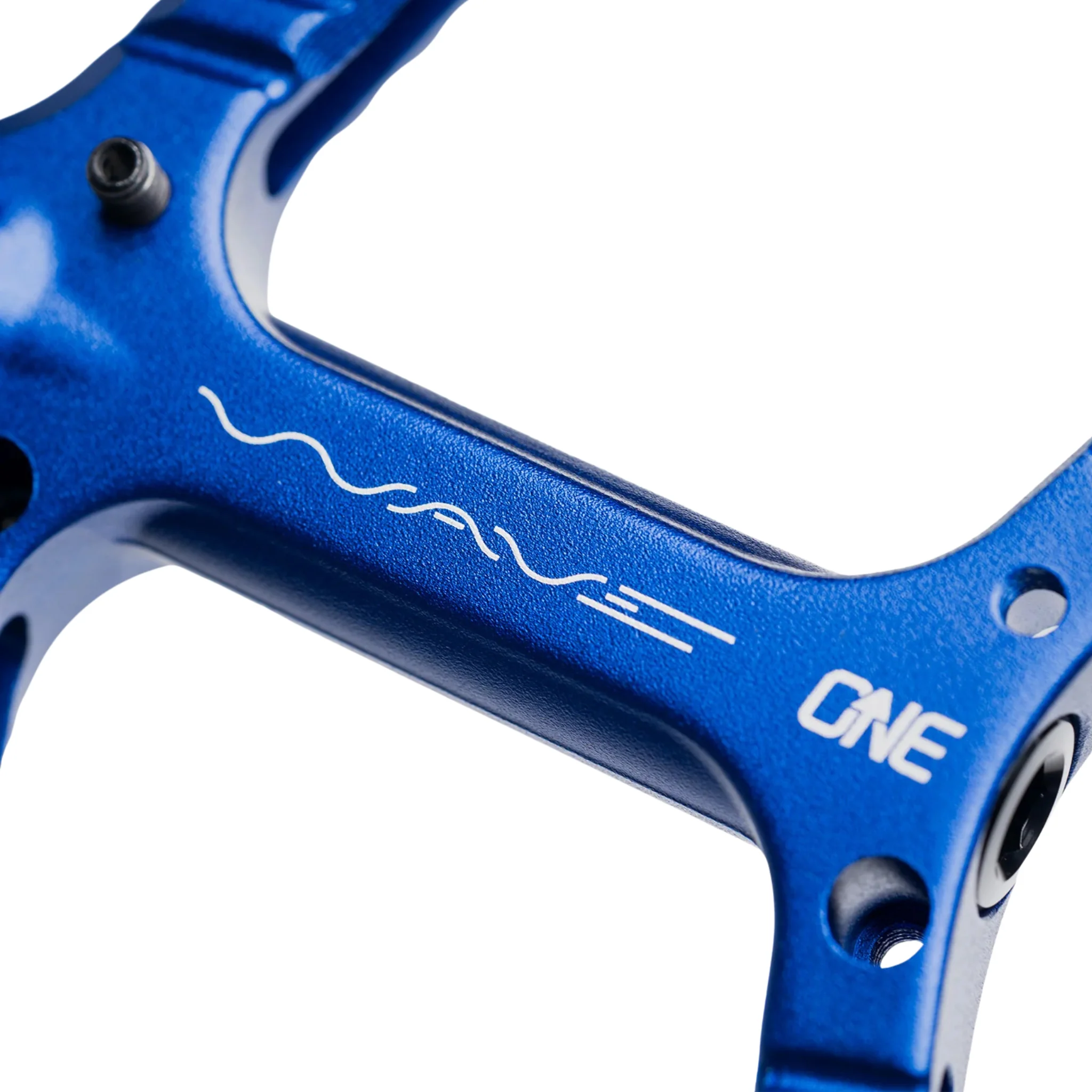

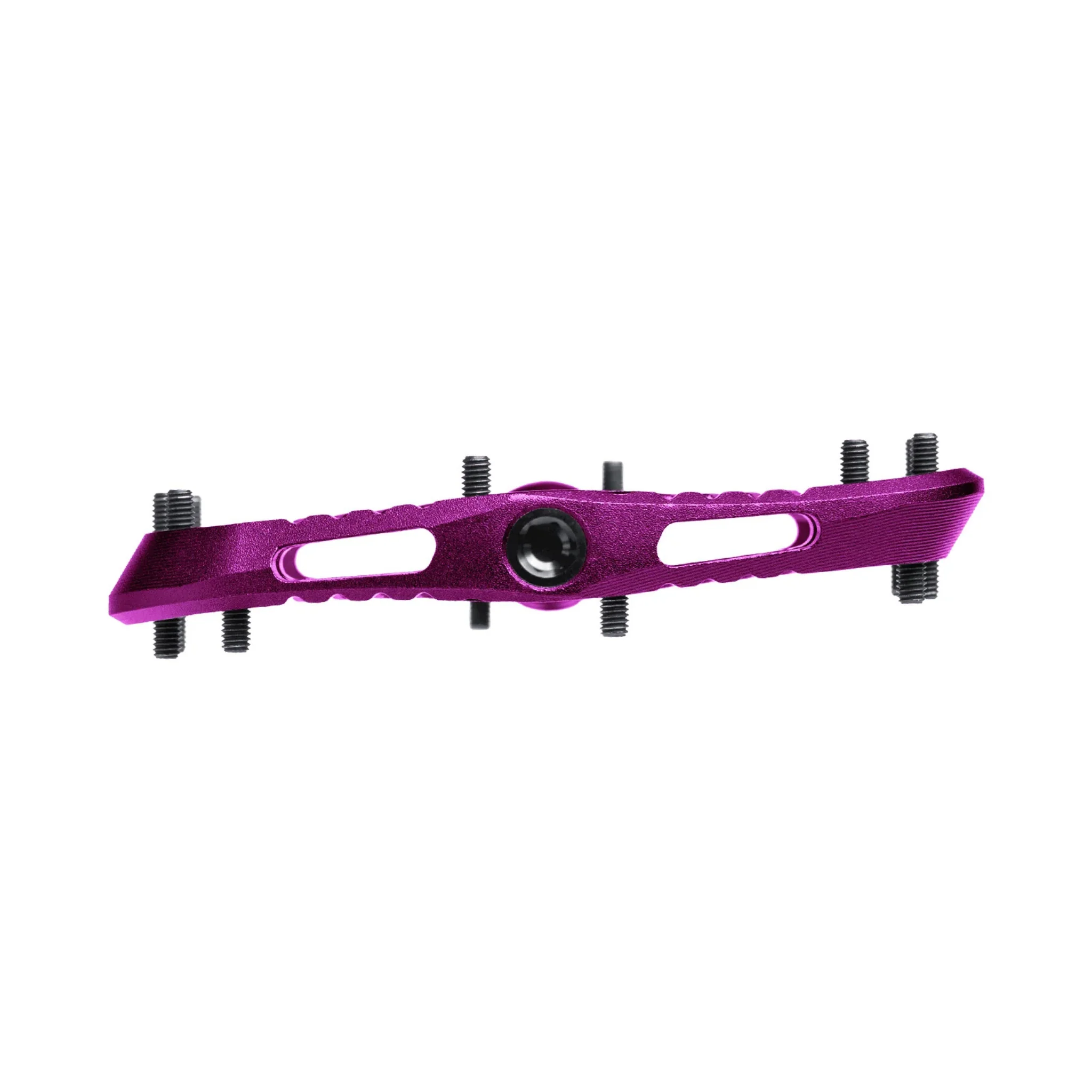

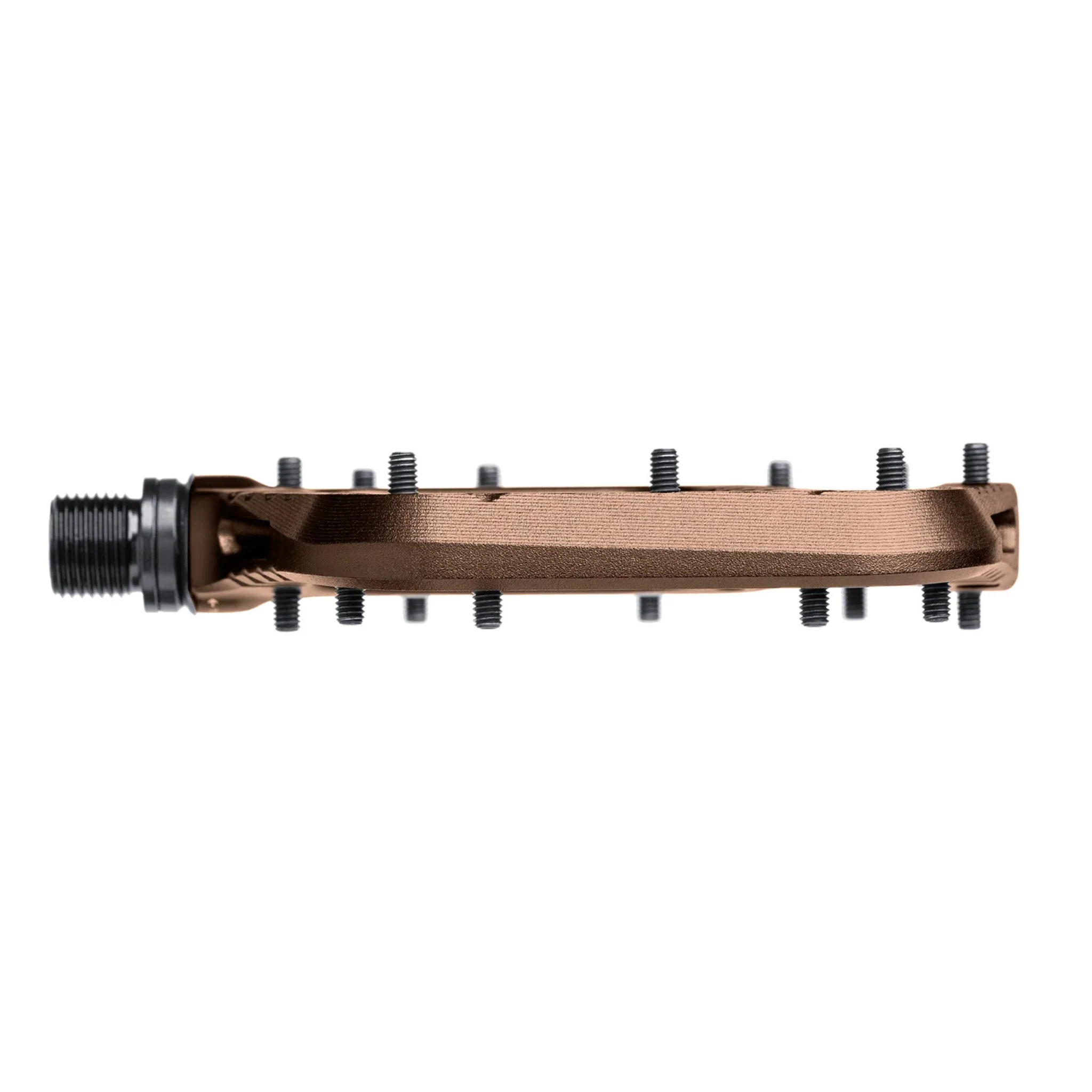

OneUp Components Wave Pedals use a patented hybrid convex and concave platform shape that encourages an aggressive heels down position and helps keep your foot planted without relying on extra long pins. The front of the pedal hugs the ball of your foot, while the sloped rear supports control and a more natural pedal stroke when seated.
Under the body, OneUp uses a sealed chromoly axle system with an igus bushing and three outboard cartridge bearings for durability and serviceability. A pedal bearing nut tool is included in the box to make seasonal service straightforward.
Features |
- Patented Wave profile hybrid convex and concave shape

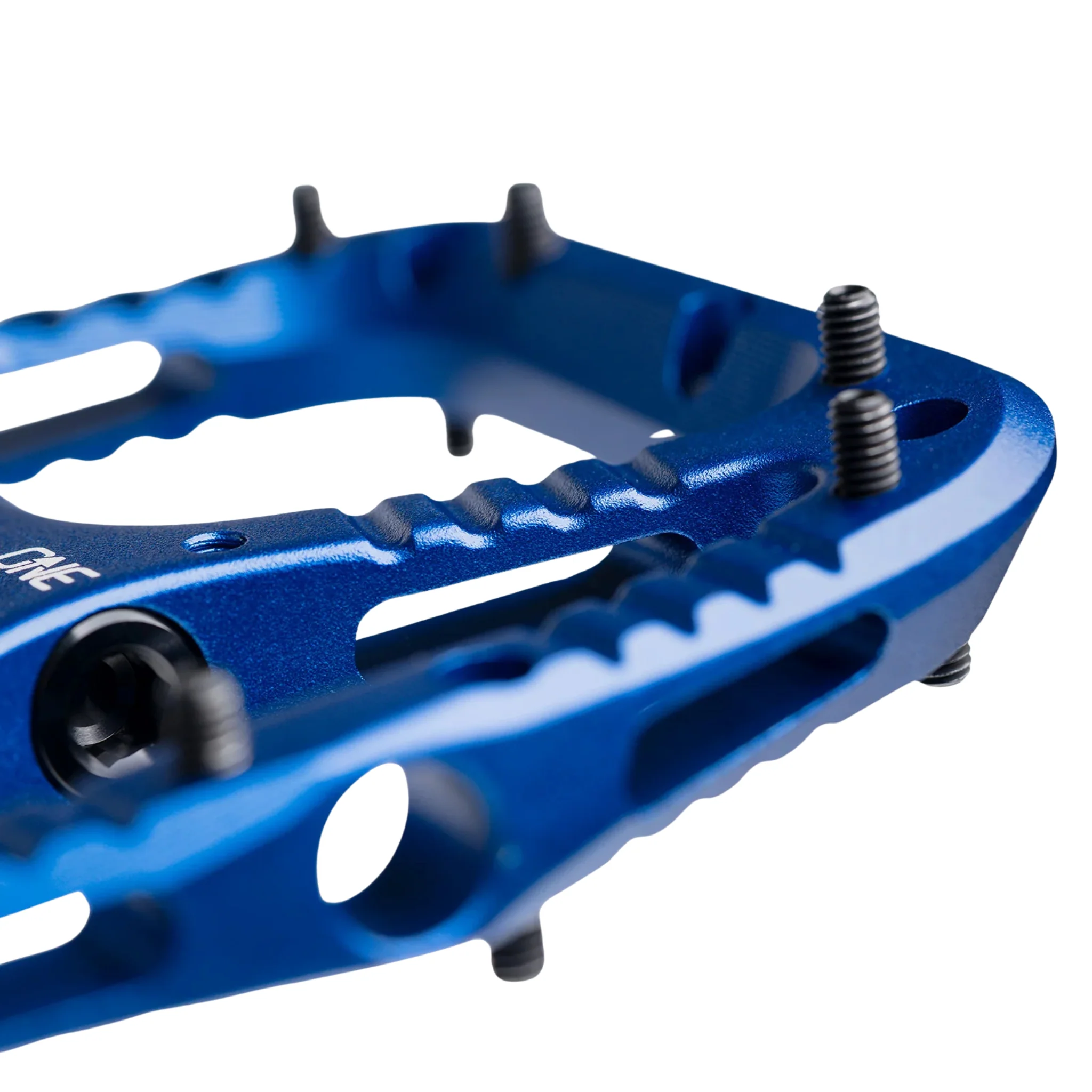

- Angled M4 hollow hex pins designed to be vertical when riding and to self clear mud
- Forged and CNC’d 6061 aluminum body
- Sealed chromoly axle with black ED coating
- Inboard igus bushing with three outboard cartridge bearings
- Pedal bearing nut tool included
- Two year manufacturer warranty
Specs |
| Model | Wave Pedals |
| Brand | OneUp Components |
| Pedal Type | Flat Pedal |
| Body Material | Forged and CNC’d 6061 aluminum |
| Axle Material | Chromoly steel with black ED coating |
| Platform Size | 107 mm x 110 mm |
| Thickness | 14.2 mm at axle, 11.5 mm at edges |
| Bearing System | Inboard igus bushing and 3 outboard cartridge bearings |
| Pins | M4 hollow pins, 10 per side |
| Weight | 355 g per pair |
| In the box |
2x Wave Pedals (1x Left, 1x Right). 9x Installed M4 hollow threaded pins per side (36x pins total). 10x Spare/Uninstalled M4 hollow threaded pins. 1x Pedal Bearing Nut Tool |
| Use | Trail, enduro, all mountain, downhill |
