Boxcar Stem
Description |

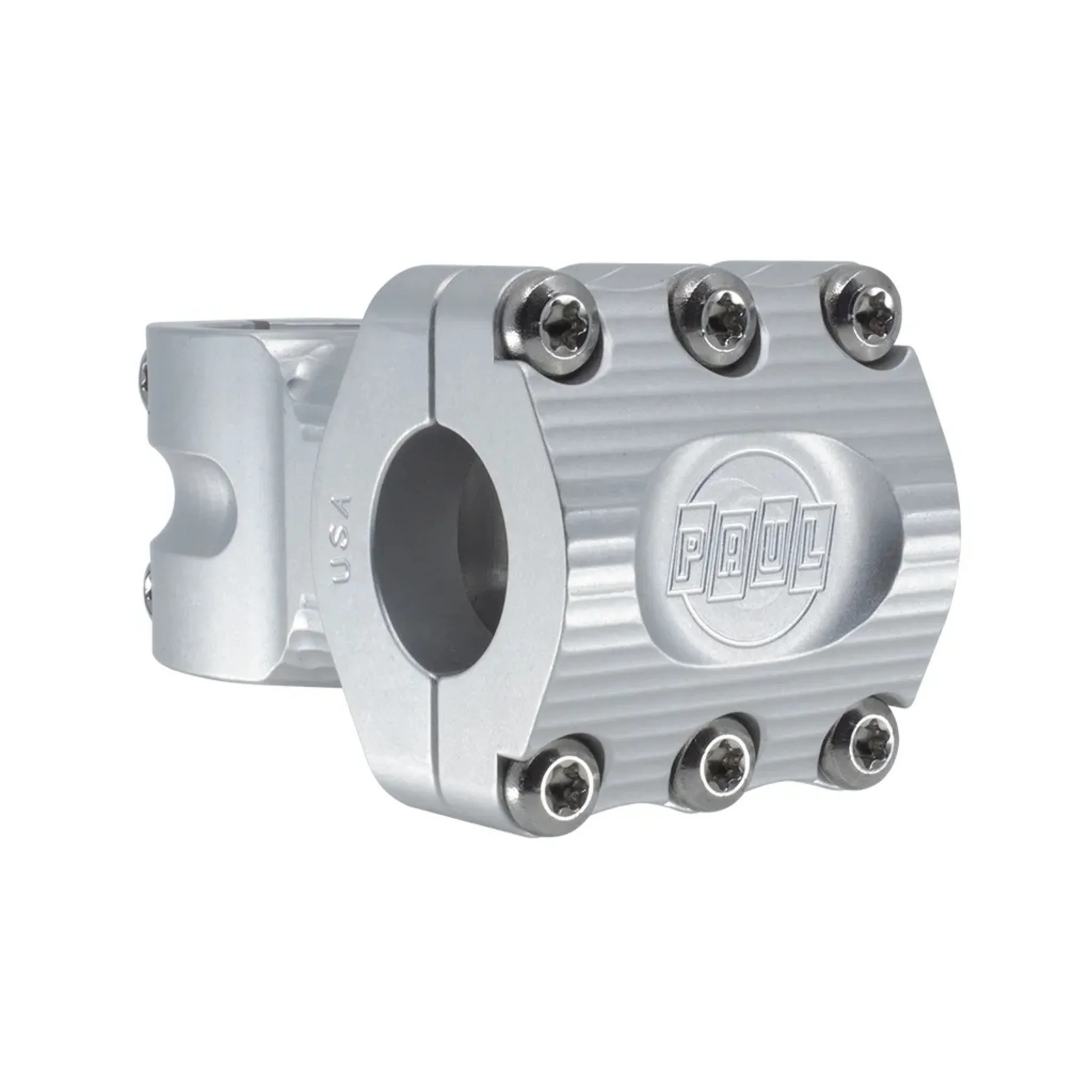

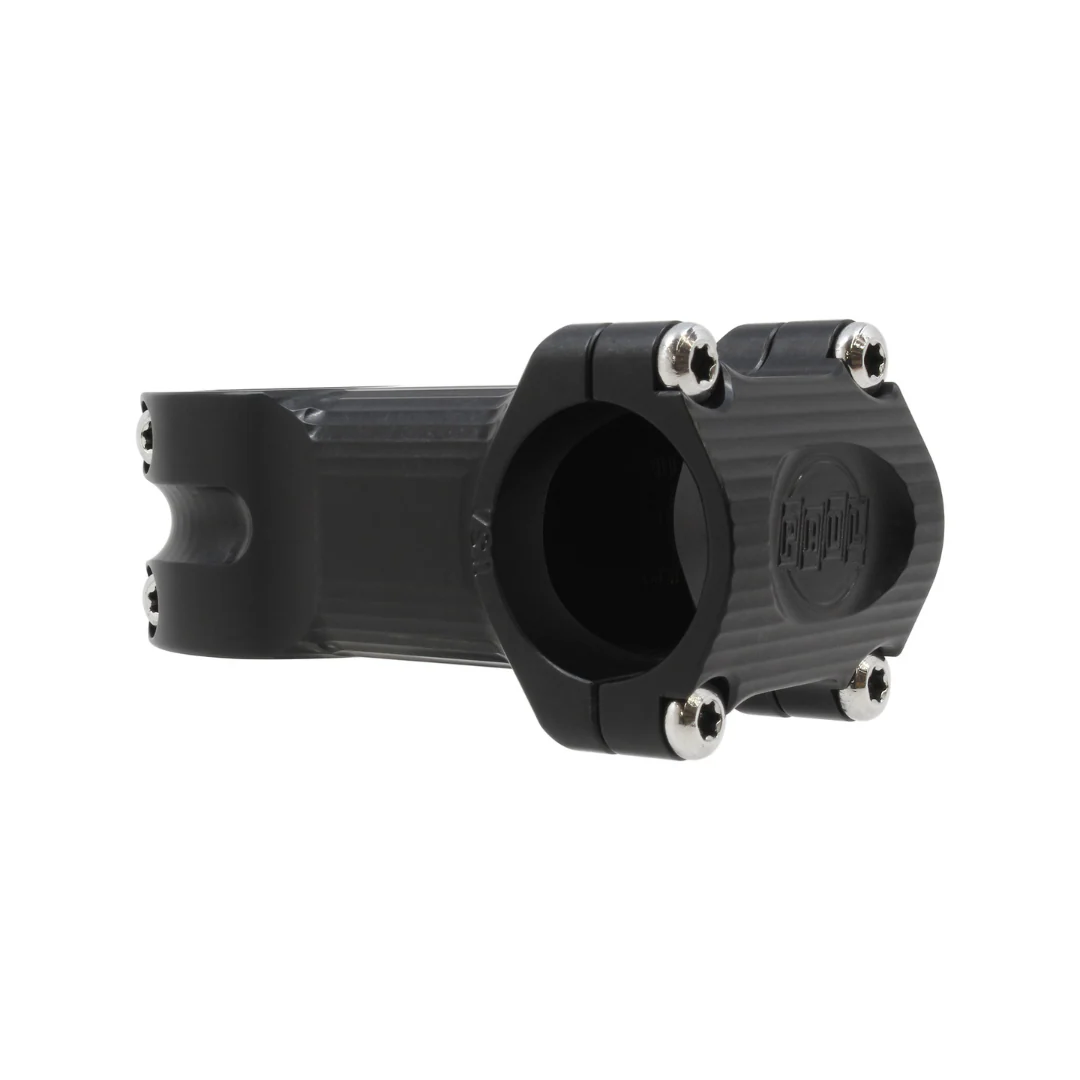

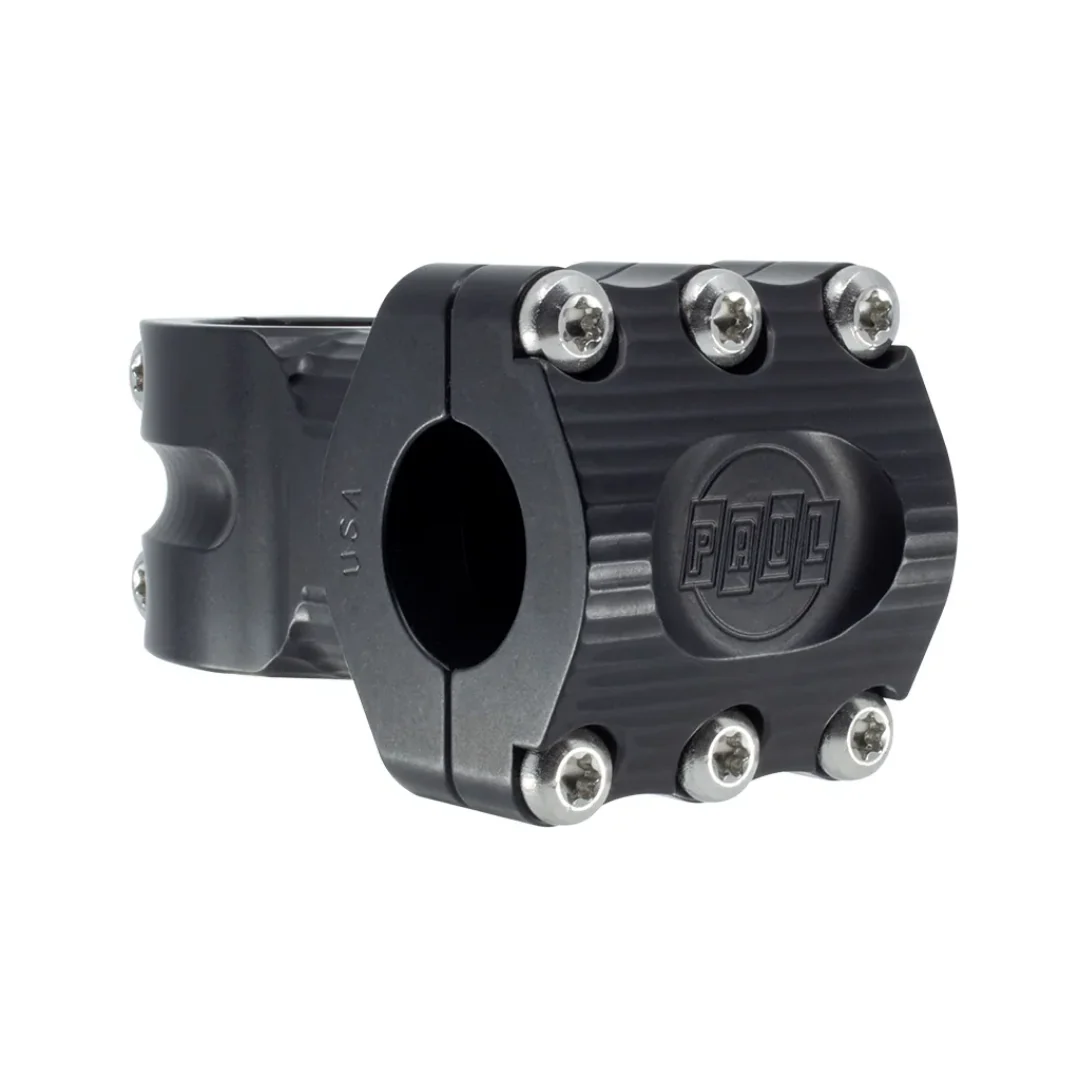

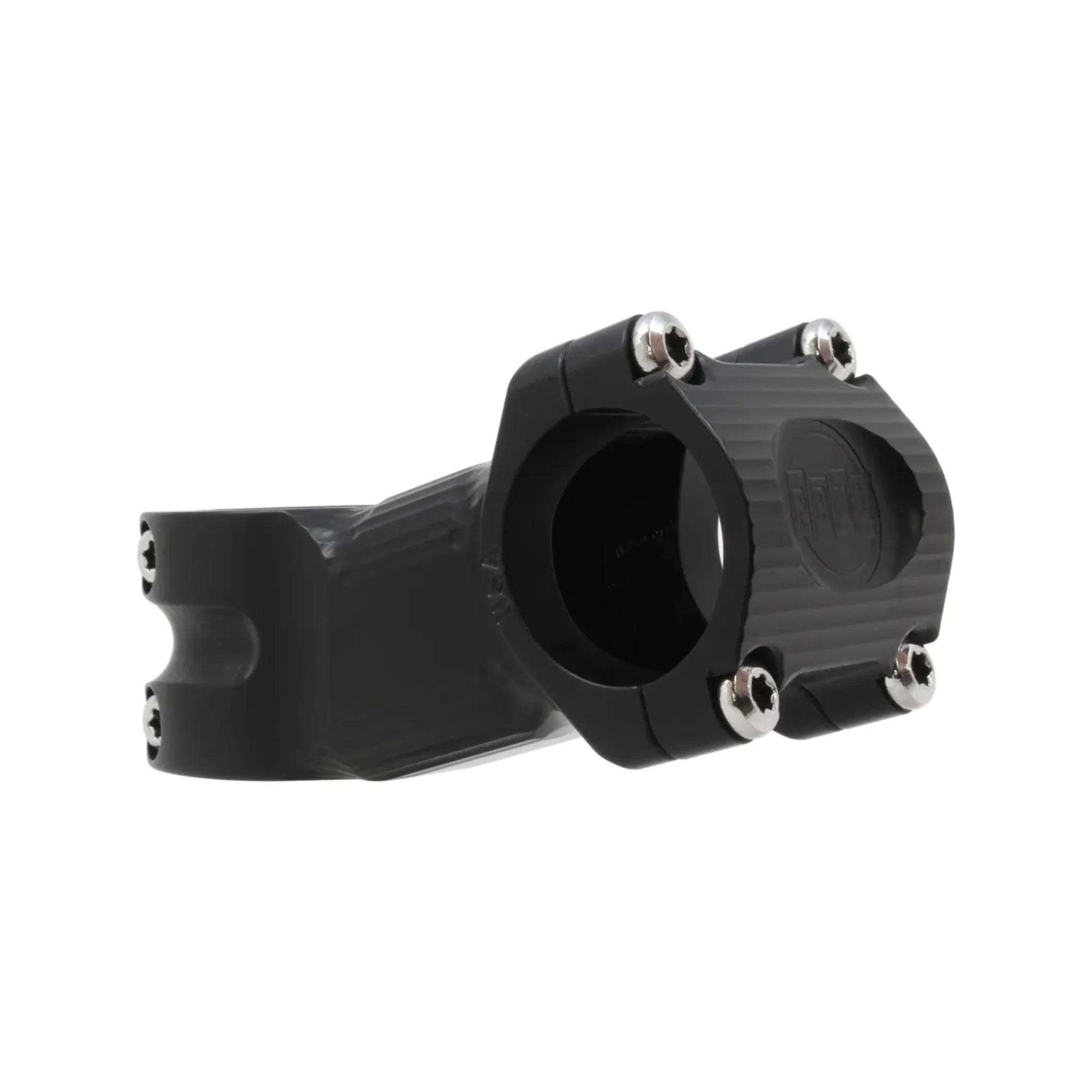

The Boxcar Stem is the perfect combination of stiffness, strength and light weight. Available in +/- 0^ in 35, 50, 70 and 90mm. Also +/- 15^ in 70 and 90mm, and +/- 7^ in 100 and 110mm. All screws are high strength stainless steel with the popular T25 head. Made in Chico, California with American aerospace alloy.
Specs |
|
Weight |
35mm +/-0: 118 g 50mm +/-0: 137 g 70mm +/-0: 153 g 90mm +/-0: 155 g 70mm +/-15: 169 g 90mm +/-15: 172 g 100mm +/-7: 181g 110mm +/-7: 203 g |
| Material | American Aerospace Aluminum |
| Finish | Anodized or Polished |
| Anodized Colour | Black, Purple or Silver |
| Bar Clamp Diameter | 31.8 |
| Lengths | 35, 50, 70, 90, 100 & 100mm |
| Stem Angle | 0 |
| S.H.I.S. Stem Clamp Diameter | 28.6mm |
| Stack Height | 36mm |
| Torque Settings |
Steerer Tube: 5nm Faceplate: 4nm |
| Faceplate Width | 46mm |
