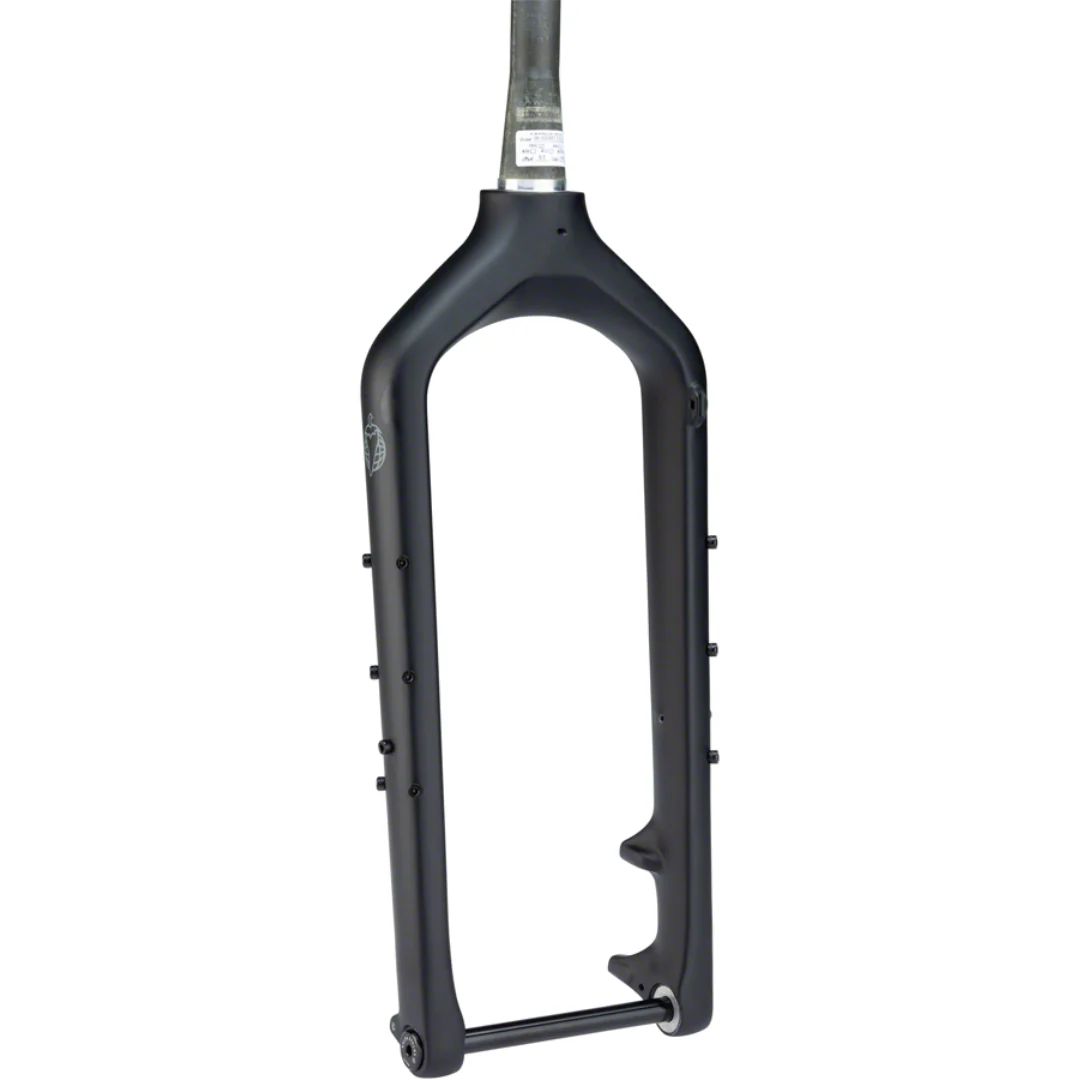

Kingpin Deluxe Fork

Description |

The Kingpin Deluxe fork is perfect for fat bike expeditions, keeping you nimble, even when fully loaded. Dual Three-Pack mounts on each leg let you attach water bottles or Anything Cages, and mid-blade mounts fit low rider racks for panniers. Or ditch the gear and hit the trails with an ultra-light and responsive fork.

Features |

• High-modulus carbon fiber construction
• Tapered 1-1/8" to 1-1/2" steerer tube
• Uncut steerer length: 260mm
• Axle-to-crown Length: 483mm
• Fork rake: 51mm150 x 15mm thru-axle
• 160mm minimum rotor size; 203mm maximum rotor size
• 26 x 5" maximum wheel/tire fit
• Dual sets of Three-Pack mounts on each fork leg for Anything Cages or water bottles
• Mid-blade mounts for low rider racks
• Internal routing for 150 boost dynamo hubs

Specs |

Material	Carbon
Brake Mount (Fork)	Post Mount 160
Steerer Tube Length	260mm
Wheel Size	26" Fat, 27.5" Fat, 29+
S.H.I.S. Stem Clamp Diameter	28.6
Crown Race	40
Axle to Crown Length	483
Colour	Black
Front Axle	15mm Thru x 150mm
Steerer Type	Tapered
Offset	51
