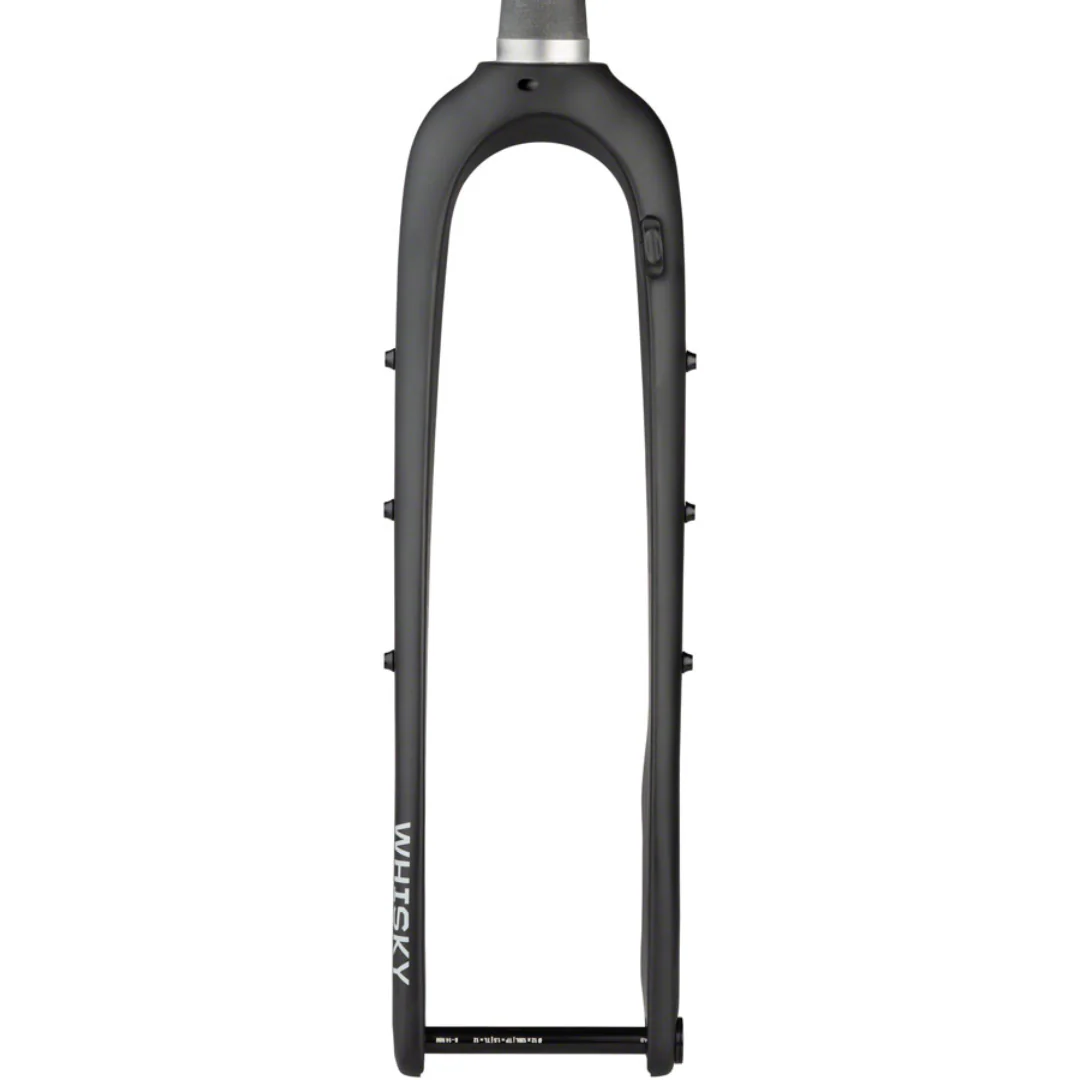

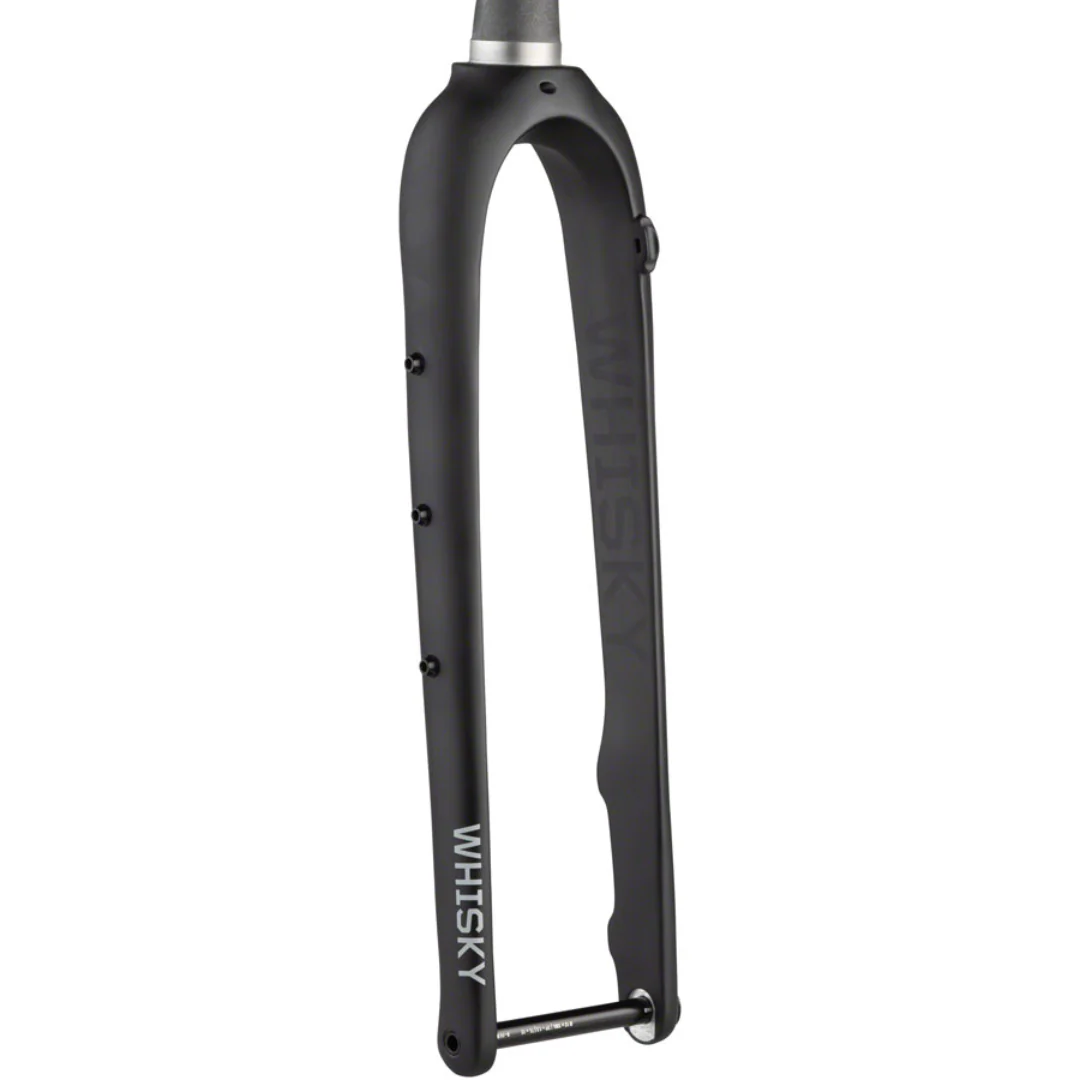

No. 9 MCX Fork

Description |

The Whisky No.9 MCX “monster cross” fork brings extra-wide tires to your drop-bar bike. How wide? The MCX accommodates tires up to 700c x 51 mm or 650b x 61 mm (that’s 2.4”). A relatively short 415 mm axle-to-crown minimizes the geometry effects of a larger fork, and a 50 mm offset improves toe clearance with large tires or fenders. The design draws from our CX forks, with lightweight carbon construction, a 12 mm thru axle, and flat-mount brakes. Three-Pack mounts, dynamo cable routing, and fender mounts (700c x 45 mm tire clearance with fender) add versatility for bikepackers and gravel riders.

Features |

• 12 x 100 mm thru-axle
• Designed for flat mount disc brakes
• Hidden, removable fender mounts
• Includes thru axle and Whisky Parts Co. compression plug
• 700c x 51 mm or 650b x 61 mm max tire size, 700c x 45 mm tire clearance with fender
• ASTM Condition 3

Specs |

Steerer Type	1 ½” Tapered
Steerer Length	350 mm
Fork Length	415 mm
Material	Carbon
Rake	50 mm
Crown Race	40 mm
Axle Type	12 mm Thru x 100 mm
ASTM Rating	Condition 3
Brake Type	Flat Mount
Max Rotor	180 mm
Fender Mounts	Yes
Max Tire	700c x 51 mm / 650b x 61 mm
Weight	540 g
Fork Cargo Weight Limit	Max 4 kg per side using all 3 bolts
Part Number	FK0513
